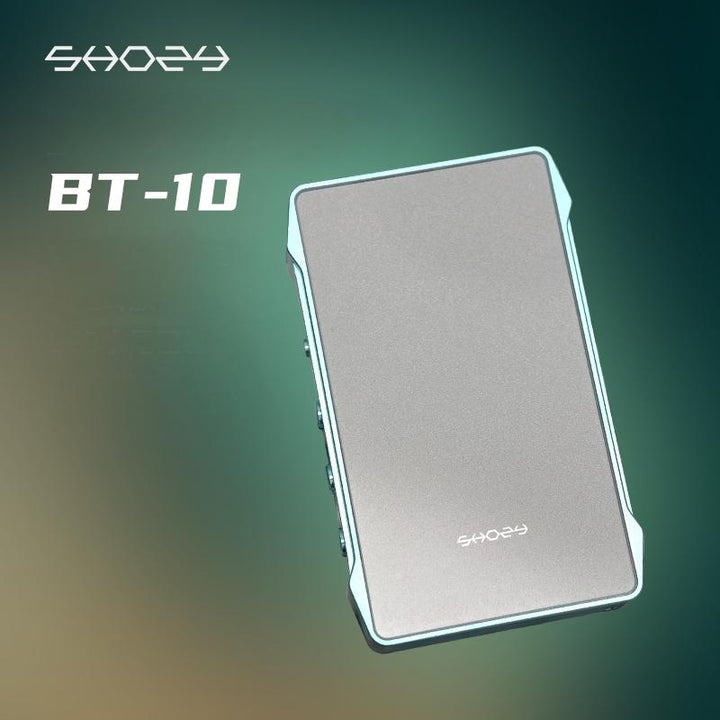

SHOZY BT-10

SHOZY BT-10 QCC5125 Dual CS43131 Bluetooth 5.1 aptX HD Decoding Portable Type-C Headphone Amplifier



QCC5125 | dual CS43131 | independent headphone amplifier | USB wired mode

4.4mm balanced | 3.5mm single-ended



Qualcomm QCC5125 Bluetooth main control chip

Bluetooth 5.1 version, support LDAC, aptX HD and other high definition Bluetooth coding

CIRRUS LOGIC CS43131 dual DAC combination

Left and right channel independent decoding, high-performance dual chip, the sound twice as good

SHOZY exclusive independent balanced headphone amplifier circuit

Flagship player technology application, listen to SHOZY sincerity

PO/BAL dual audio output interface

3.5mm single-ended /4.4mm balanced output

Type-C Wired decoding headphone amplifier mode

Connect a computer or mobile phone with a USB cable and instantly turn into a small tail

Built-in large capacity battery

780mAh large capacity, measured battery lasts no less than 10 hours

Built-in dual microphones

Support CVC noise reduction, voice calls clearer

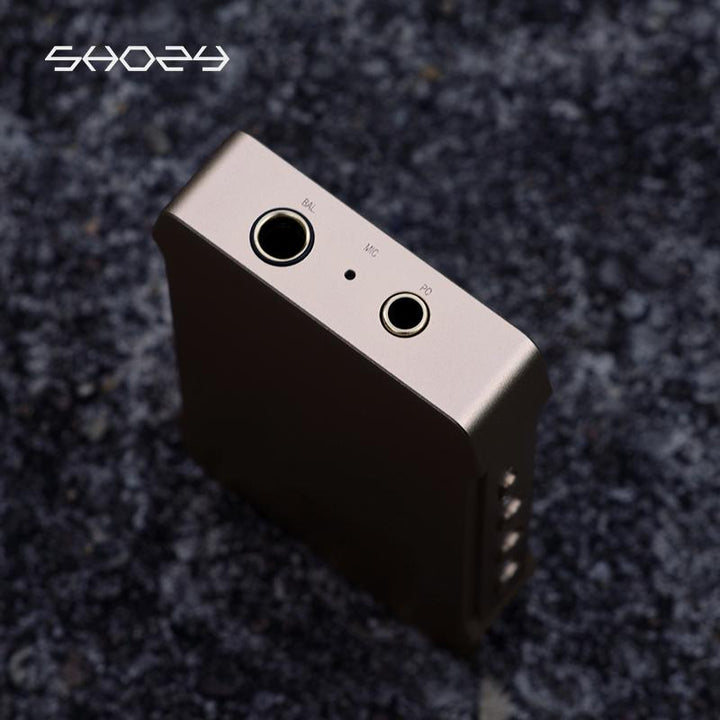

Dual audio output interface

The BT-10 is equipped with BAL 4.4mm balanced output interface and PO 3.5mm single-ended interface. Balanced sound atmospheric, single-end sound delicate, users can match different earphones according to preferences, get different listening experience.

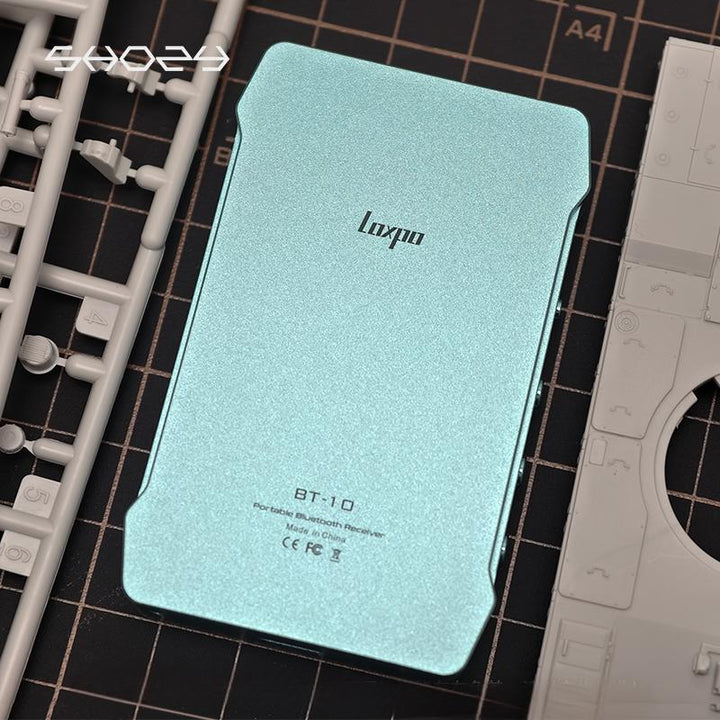

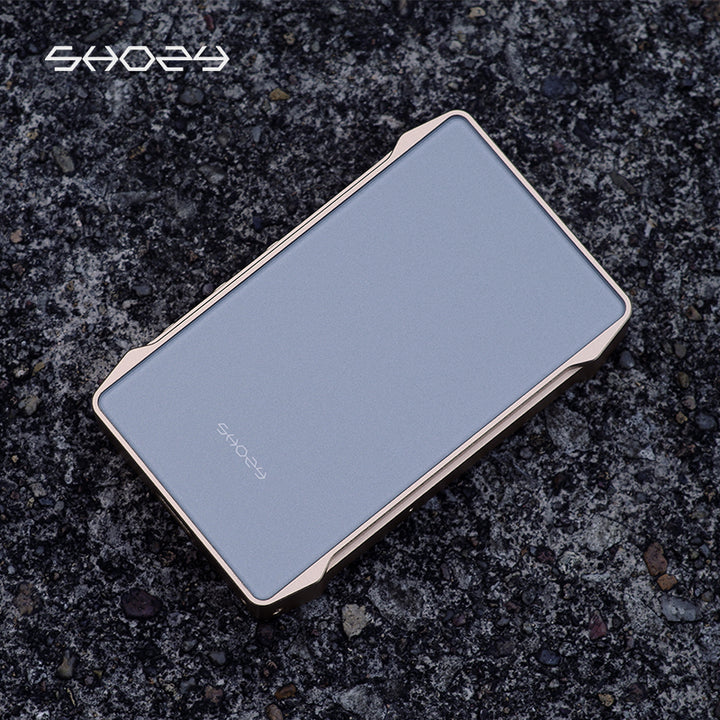

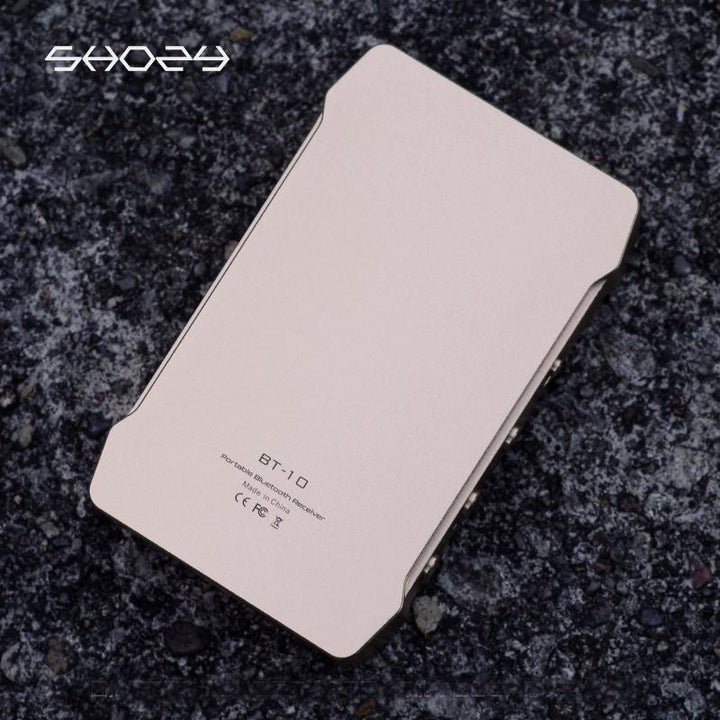

Distinctive appearance

The appearance follows the design of SHOZY Alien player, revealing a distinctive elegance. CNC machining of aluminum alloy body, and then grinding, oxidation, sandblasting and other complex processes. The panel is made of tempered glass processed by a special process, which presents a variety of visual effects from different light angles.



Small without loss of connotation

The size of the BT-10 is only 72.5× 44.9×12.5mm, and the weight is even less than 60 grams.



Specification

Brand :SHOZY

Model: BT-10

Product: Bluetooth decoding headphone amplifier

Bluetooth chip: QCC5125

Bluetooth version: 5.1

Bluetooth format: aptX /aptX HD/aptX Adaptive/LDAC/AAC/SBC

DAC chip: CS43131×2

Output interface: 4.4mm balanced /3.5mm single-ended

USB port: Type-C

USB decoding: Support (cable need to be selected)

Battery life: About 10 hours

Battery capacity: 780mAh

Voice call: two microphones

Dimensions: 72.5×44.9×12.5mm

Weight: About 56.7g



3.5mm single-ended

Output power: L+R≥20mW+20mW (32Ω THD+N<1%)

SNR: ≥115dB (32Ω load /A weight)

THD+N: <0.003% (32Ω load /A weight)

Frequency response: ±0.2dB (20-20KHz)



4.4mm balanced

Output power: L+R≥45mW+45mW (32ΩTHD+N<1%)

SNR: ≥118dB (32Ω load /A weight)

THD+N: <0.003% (32Ω load /A weight)

Frequency response: ±0.2dB (20-20KHz)

Package

SHOZY BT-10
